NIBE SPLIT HBS 20 is an intelligent and compact inverter-controlled air/water heat pump. The outdoor module AMS 20 is connected with refrigerant pipes to the NIBE HBS 20 split box, which is located indoors. NIBE SPLIT HBS 20 provides optimum savings since the heat pump automatically adjusts to the property’s output requirements all year round. NIBE SPLIT HBS 20 works down to an outdoor temperature of -20°C and at the same time supplies up to 58°C in supply line temperature. The effective cooling function allows the heat pump to deliver a comfortable indoor climate even at high outdoor temperatures.
Compact heat pump that adapts to your home’s requirements
High capacity even down to -20°C and effective cooling function.
Energy-saving smart technology with user-friendly control.
- Functions
- Accessories
- Technical data
- Document
Inverter controlled compressor
The heat pump has an inverter-controlled compressor that helps you as it automatically adapts to your house and supplies your plant with renewable energy.
NIBE GSU 20
NIBE SMO 20
The NIBE SMO 20 gives optimised control of the climate system and is designed to be combined with NIBE air/water heat pumps to provide an integrated climate system for your home. The control module, NIBE SMO 20, offers a flexible system solution. The NIBE SMO 20 is connected to additional components for efficient heating, cooling and hot water for a customised installation. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.
NIBE BAU 20
NIBE KVR 10-10, 1 M
Condensation water pipes for F2040. Different lengths, 1, 3 or 6 m.
NIBE KVR 10-30, 3 M
Condensation water pipes for F2040. Different lengths, 1, 3 or 6 m.
NIBE KVR 10-60, 6 M
Condensation water pipes for F2040. Different lengths, 1, 3 or 6 m.

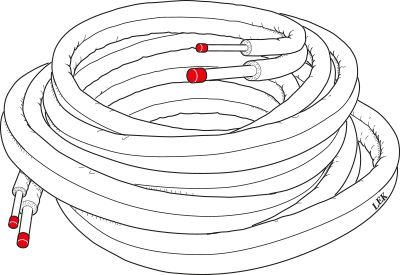

NIBE Refrigerant pipe kit
Refrigerant pipe kit 12m
NIBE SMO 40
The NIBE SMO 40 gives optimised control of the climate system and is designed to be combined with NIBE air/water heat pumps to provide an integrated climate system for homes and properties. The NIBE SMO 40 offers maximum flexibility when it comes to system solutions. The control module can be connected to components such as a water heater, additional heat sources and other accessories specific to a customised installation. Up to eight NIBE air/water heat pumps can be connected to a control system. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.
Height (mm)
565
Width (mm)
404
Depth (mm)
472
Net weight (kg)
13
